BTS Installation & Commissioning

Reliable BTS Deployment Partners

Our Telecom Equipment Installation and Commissioning services are designed for timely delivery and cost-effectiveness. We specialize in offering turnkey solutions for BTS Installation & Commissioning and MW Installation & Commissioning within telecom networks. Backed by a seasoned installation team. Below are some highlighted features of our services:

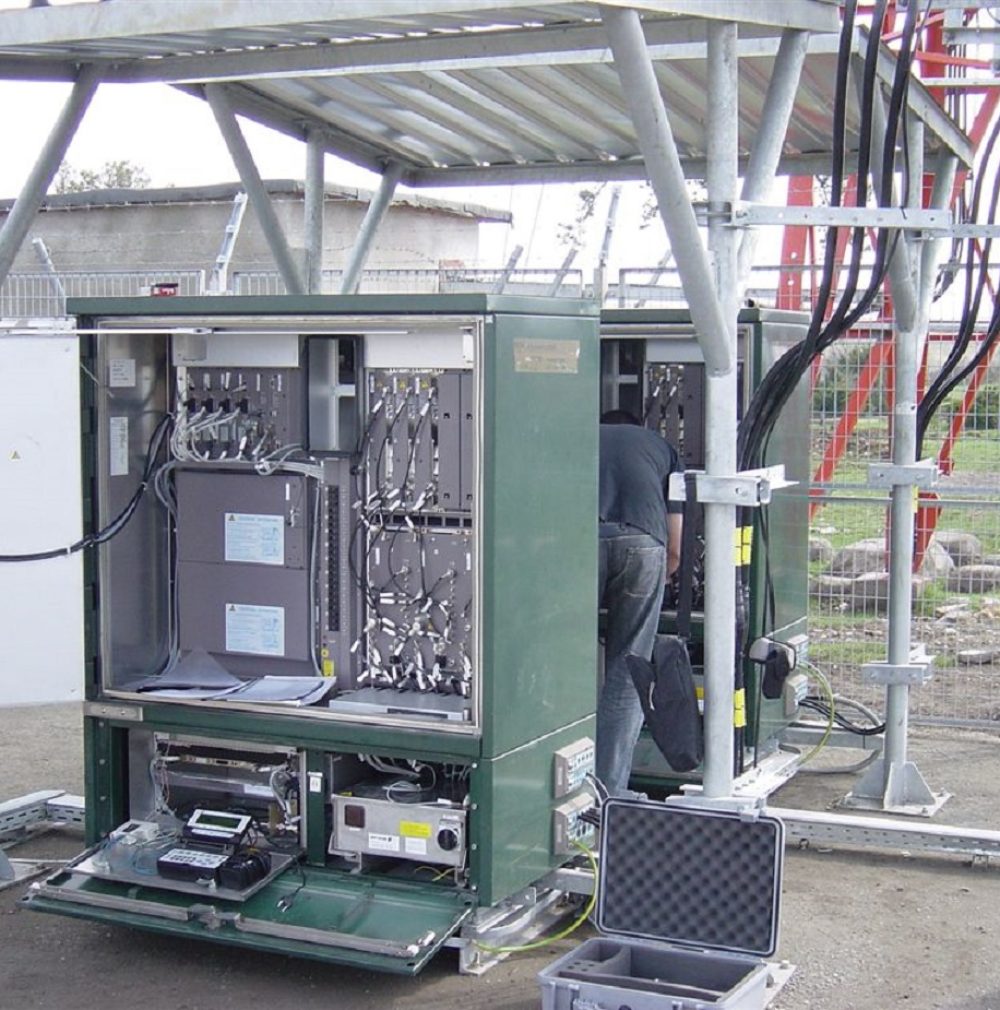

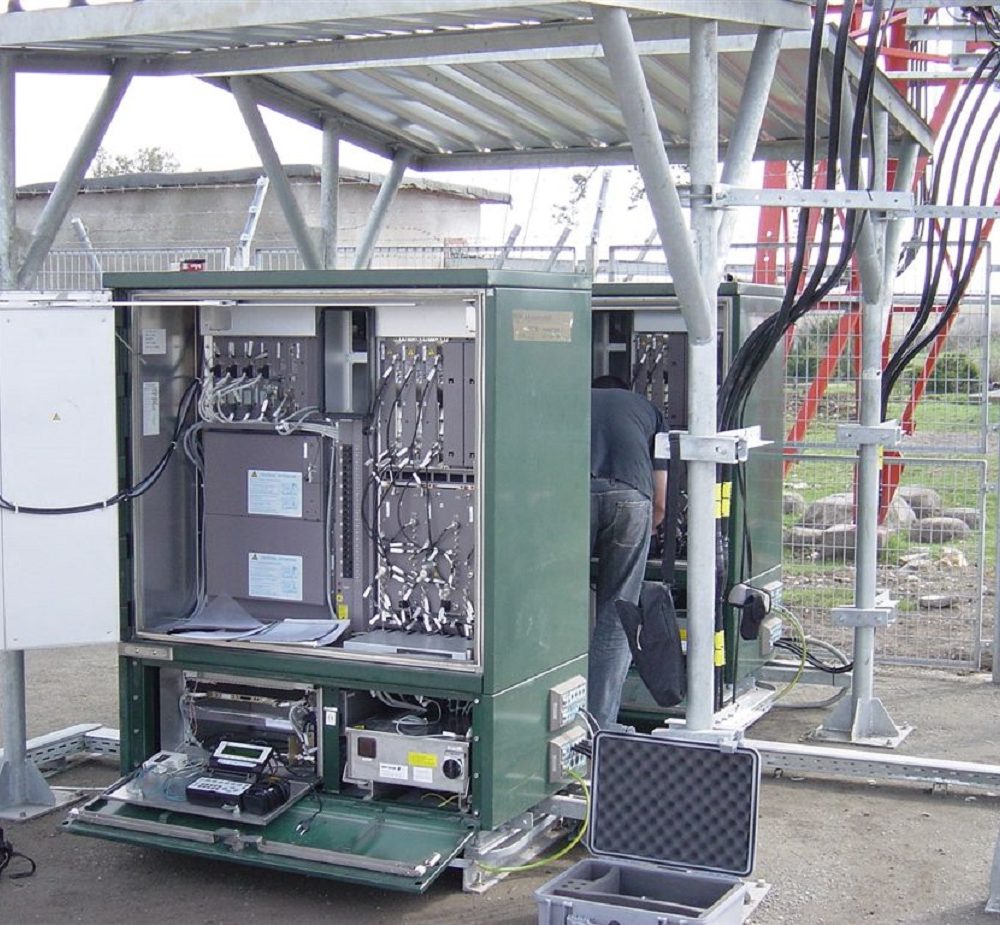

bts-installation-image

Base Transceiver Station (BTS)

Scope of work :

  • Receipt of site information from customer along with TND/RND
  • RFI check along with ensuring the site permissions
  • Material reception at the sites and checking as per packing list. Intimate to the customer in case of any deficiency
  • Hoisting of GSM/CDMA antennas on tower as per TND/RND
  • Clamping and routing of RF cables from Shelter to Antennae
  • Grounding the Antennae and RF cables at appropriate place
  • Ensuring drip loop/Z loop at cable entry plate
  • Ensuring no sharp bend on RF cables
  • Fixing OGB
  • Weather proofing
  • Fixing EMPs/Surge arrestors along with connectorization in shelter
  • Grouting the BTS
  • Extending, power cables, E1 cables, grounding cables to BTS
  • Fixing IGB and extending grounding to all peripheral equipment
  • Fixing DDF
  • Installation of Battery bank and rectifier
  • Installation of internal cable try
  • Installation of indoor jumpers
  • Checking VSWR
  • Switching on the equipment
  • Commissioning the equipment as per defined procedure
  • Power Measurement
  • Filling the check list and execution of quality audit

Outdoor :

  • Fixing of horizontal cable tray
  • Fixing of RF antennae and microwave antennae
  • Clamping and routing of cables
  • Grounding / earthing
  • Alignment of antenna as per specifications

Indoor :

  • Installation of radio base station (RBS)
  • Installation of TX rack
  • Installation & commissioning of TX equipment
  • Fixing of cable tray
  • Grounding of equipment

Installation of rectifier and battery bank

MW Installation and commissioning

Scope of works :

  • Receipt of site information from customer along with TND/RND
  • RFI check in near end and far end besides ensuring the site permissions
  • Material reception at both ends and checking as per packing list and intimate the customer in case of exigency
  • Assembling and hoisting of MW antennas & radios on tower in both ends as per TND/RND
  • Clamping and routing of if cables from Shelter to Antennae in both ends
  • Grounding the antennas and RF cables at appropriate place
  • Fixing Transmission rack if required in both ends
  • Installation & commissioning of IDUs in shelters
  • Alignment of MW antennas till we achieve required receive level
  • Grounding, weather proofing and labeling all cables in both ends
  • Acceptance test

MW Installation/Commissioning/Alignment

  • The mounting accessories of the MW antennae are duly inspected and the mounting arrangements are organized for the required orientation
  • The antennae and wave-guide locks are provided, flexible wave guides are fixed with carefully to ensure reliable and proper RF connections
  • The outdoor radio unit & antenna support arms are fixed
  • Alignment of Antennae of the link is done to achieve the optimum receiving signal level
